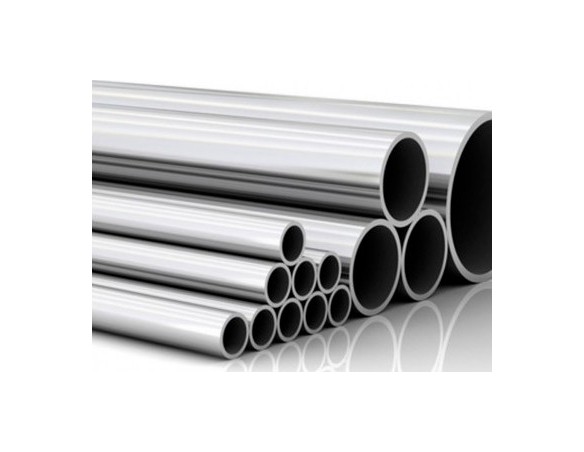

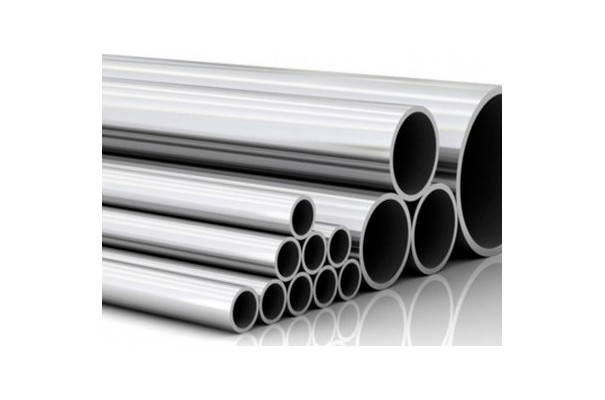

Tubo redondo com costura - Gama milimétrica

Name: Tubo redondo com costura - Gama milimétrica
Brand: Tubinox
SKU: 32

Qualidade: Aço inox AISI 304L, 316L;

Acabamento: Laminado a quente, 2B, baço, esmerilado, escovado, polido;

Comprimento: 6.000 mm;

Outras medidas, qualidades e acabamentos sob consulta;

As medidas abaixo referidas estão sujeitas a confirmação pela Tubinox;

Dados do produto
PDF

Diâmetro Exterior		Peso Teórico dos Tubos Kg/m
Diâmetro Exterior		Espessura (mm)

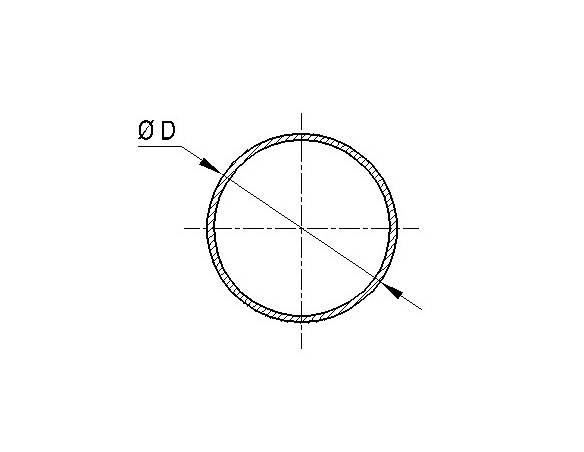

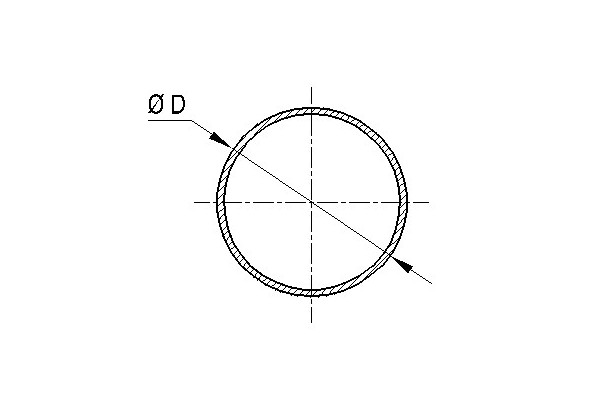

Ø D (mm)	Pol.	1	1,25	1,5	1,65	2	2,3	2,5	2,6	3	3,2	3,6	4
6	-	0,125
8	-	0,175
10	-	0,225
12	-	0,275	0,336	0,394		0,503
13	-	0,300	0,367	0,431
14	-	0,326	0,399	0,470		0,601
15	-	0,351	0,430	0,507
16	-	0,376	0,462	0,545	0,593	0,701
18	-	0,426	0,524	0,620	0,676	0,801	0,904	0,970
19	-	0,451	0,535	0,657	0,697	0,851
20	-	0,476	0,587	0,695	0,758	0,901	1,019	1,096	1,133	1,277
22	-	0,526	0,625	0,770	0,817	1,002
23	-	0,550	0,680	0,806	0,880	1,050
25	-	0,601	0,743	0,883	0,965	1,152	1,307	1,409	1,458	1,653
28	-	0,676	0,837	0,995	1,089	1,302
30	-	0,726	0,900	1,070	1,171	1,402	1,595	1,722	1,784
32	-	0,776	0,962	1,146	1,254	1,502	1,710	1,847	1,914	2,178
33	-	0,800	0,994	1,183	1,295	1,552
35	-	0,851	1,056	1,258	1,378	1,653	1,883	2,035
38	-	0,926	1,150	1,371	1,502	1,803	2,056	2,222	2,305	2,629
40	-	0,977	1,166	1,446	1,538	1,903	2,171	2,362	2,435	2,779	2,949
42	-	1,025	1,275	1,521	1,667	2,003
43	-	1,052	1,307	1,559	1,708	2,053	2,344	2,535
44,5	-	1,089	1,301	1,615	1,719	2,128		2,629	2,728	3,117
45	-	1,102	1,316	1,634	1,739	2,153	2,459	2,661	2,760	3,155	3,349
50	-	1,227	1,526	1,822	1,998	2,404	2,747	2,974	3,086	3,531	3,750	4,183	4,607
50,8	-	1,247	1,551	1,582	2,031	2,444	2,793	3,024	3,138	3,591	3,814	4,255	4,687
51	-	1,252	1,496	1,859	1,979	2,454	2,805	3,036	3,151	3,606
52	-	1,277	1,526	1,897	2,019	2,504	2,862	3,099	3,216	3,681
53	-	1,302	1,620	1,934	2,122	2,554	2,920	3,161	3,281	3,756	3,990
54	-	1,327	1,651	1,972	2,163	2,604	2,978	3,224	3,346	3,831	4,071
57	-	1,402	1,745	2,085	2,287	2,754	3,150	3,412	3,542	4,056	4,311	4,814	5,308
63,5	-		1,948	2,329	2,555	3,080	3,525	3,819	3,965	4,545	4,832	5,400	5,960
70	-		2,067	2,573	2,740	3,405	3,899	4,226	4,388	5,033
73	-		2,243	2,628	2,944	3,551	4,066	4,408	4,577	5,251	5,586	6,248	6,902
76	-		2,337	2,795	3,068	3,701	4,239	4,595	4,772	5,477	5,826	6,518	7,202
80	-		2,465	2,948	3,237	3,906	4,475	4,852	5,039	5,784	6,154	6,887	7,612
83	-		2,559	3,061	3,361	4,056	4,648	5,039	5,234	6,010	6,394	7,157	7,913
84	-		2,590	3,099	3,402	4,107	4,705	5,102	5,299	6,085	6,474	7,248	8,013
103	-			3,812	4,187	5,058	5,800	6,291	6,536	7,512	7,997	8,960	9,916
104	-			3,850	4,229	5,108	5,857	6,354	6,602	7,587	8,077	9,050	10,016
108	-			4,000	4,394	5,308	6,087	6,604	6,862	7,888	8,397	9,411	10,417
127	-			4,714	5,179	6,260	7,182	7,794	8,099	9,315	9,920	11,124	12,320
129	-			4,789	5,262	6,360	7,297	7,919	8,229	9,465	10,080	11,304	12,520
153	-			5,726	6,293	7,610		9,481		11,340		13,185	15,019
154	-					7,612	8,737	9,484	9,857	11,343	12,083	13,558	15,024
156	-					7,712	8,852	9,609	9,987	11,493	12,244	13,738	15,224
203	-			7,616	8,372	10,130		12,631		15,120		17,595	20,059
204	-					10,116	11,616	12,614	13,112	15,099	16,090	18,065	20,032
206	-					10,216	11,731	12,739	13,242	15,249	16,250	18,245	20,232
253	-			9,506	10,451	12,650		15,781		22,005			25,009
254	-					12,620	14,496	15,744	16,367	18,855	20,096	22,572	25,040
255	-							15,806	16,435	18,930	20,176	22,662	25,140
256	-					12,720	14,611	15,869	16,497	19,005	20,256	22,752	25,240
303	-			11,396	12,530	15,170		18,931		22,680		26,415	30,139
304	-			11,434	12,571	15,220	17,370	18,874	19,622	22,611	24,103	27,079	30,048
306	-					15,224	17,491	18,999	19,753	22,761	24,263	27,260	30,248
354	-					17,605	20,228	21,975	22,848	26,333	28,072	31,545	35,010
406	-									30,234	32,233	36,226	40,211
456	-									33,985	36,234	40,728	45,213
506	-									37,736	40,235	45,229	50,214
